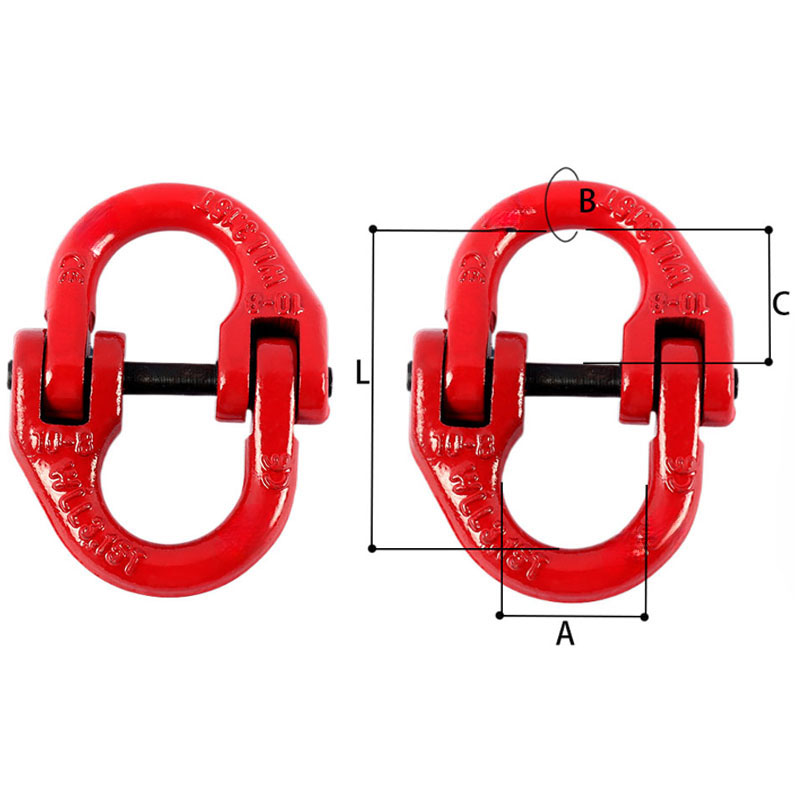

Butterfly Connecting Link
• 4 times safety factor
• Wear-resistant and corrosion resistant
• 4 times breaking load, high strength and excellent toughness
• Die-forged from alloy steel material
• Easy to assemble and disassemble
• Widely used for lifting rigging industry
BUTTERFLY CLAMP PARAMETER TABLE (MM)
| Item No. | Working Load Limit (Tonnes) | Breaking Load (Tonnes) | A (mm) | B (mm) | C (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YXTC-CT103-1.12 | 1.12 | 4.48 | 15.4 | 8 | 46 | 60.5 | 0.08 |
| YXTC-CT103-2 | 2 | 8 | 19 | 8.5 | 58.5 | 76 | 0.14 |
| YXTC-CT103-3.15 | 3.15 | 12.8 | 25.6 | 11 | 70 | 92 | 0.32 |
| YXTC-CT103-5.3 | 5.3 | 21.2 | 30.1 | 15 | 87.6 | 117.6 | 0.66 |
| YXTC-CT103-8 | 8 | 32.8 | 34 | 19.1 | 113.6 | 152 | 1.3 |
| YXTC-CT103-10 | 10 | 40 | 38.4 | 21 | 113.5 | 155.5 | 1.8 |
| YXTC-CT103-12.5 | 12.5 | 50 | 42 | 22 | 120 | 167.8 | 2.1 |
| YXTC-CT103-15 | 15 | 60 | 51 | 26 | 145.6 | 197.6 | 3.4 |
| YXTC-CT103-21.2 | 21.2 | 84.8 | 58 | 30 | 160.8 | 222.8 | 5.2 |
| YXTC-CT103-31.5 | 31.5 | 126 | 67.5 | 37 | 205.3 | 281.4 | 10.4 |
Title：Chain Adjuster
• 4 times safety factor
• Wear-resistant and corrosion resistant
• 4 times breaking load, high strength and excellent toughness
• Die-forged from alloy steel material
• Easy to assemble and disassemble
• Widely used for lifting rigging industry

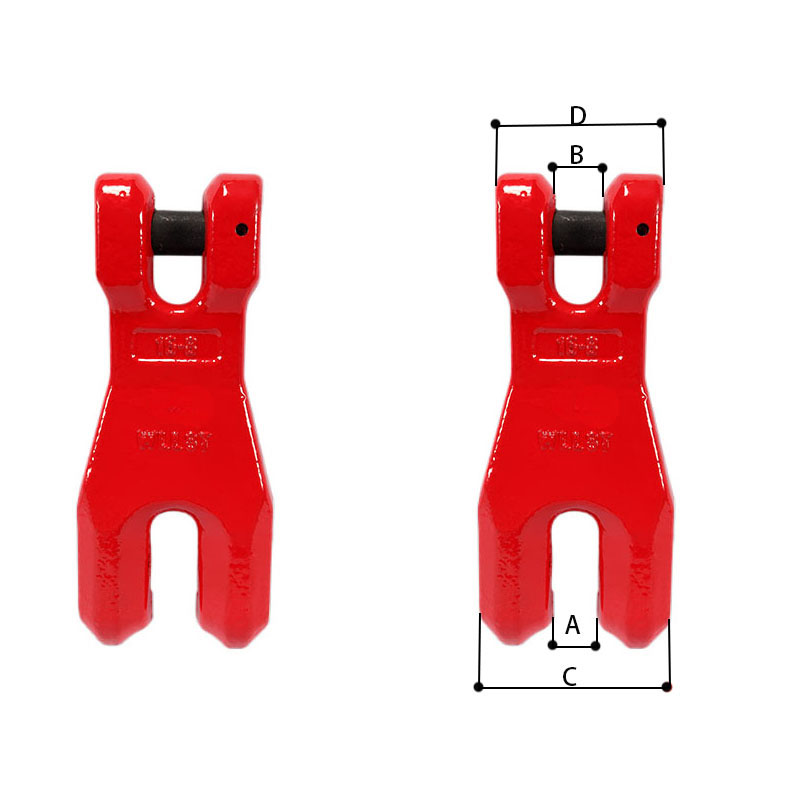

G80 CHAIN ADJUSTER
| Item No. | Working Load Limit (Tonnes) | Breaking Load (Tonnes) | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| YXTC-CT105-6 | 1.12 | 4.48 | 7.5 | 7.5 | 33 | 26 | 73.5 | 0.17 |
| YXTC-CT105-7/8 | 2 | 8 | 9.5 | 9.5 | 45 | 36 | 101 | 0.42 |
| YXTC-CT105-10 | 3.15/3.2 | 12.6 | 13 | 13 | 55 | 48 | 138 | 1 |
| YXTC-CT105-13 | 5.3/5.4 | 21.2 | 18 | 18 | 75 | 59 | 177 | 2 |
| YXTC-CT105-16 | 8 | 32 | 21 | 21 | 93 | 73 | 220 | 3.8 |
| YXTC-CT105-20 | 12.5 | 50 | 22 | 22 | 99 | 78 | 238 | 4.9 |
| YXTC-CT105-22 | 15 | 60 | 25.5 | 25.5 | 118 | 98 | 295 | 8.5 |
