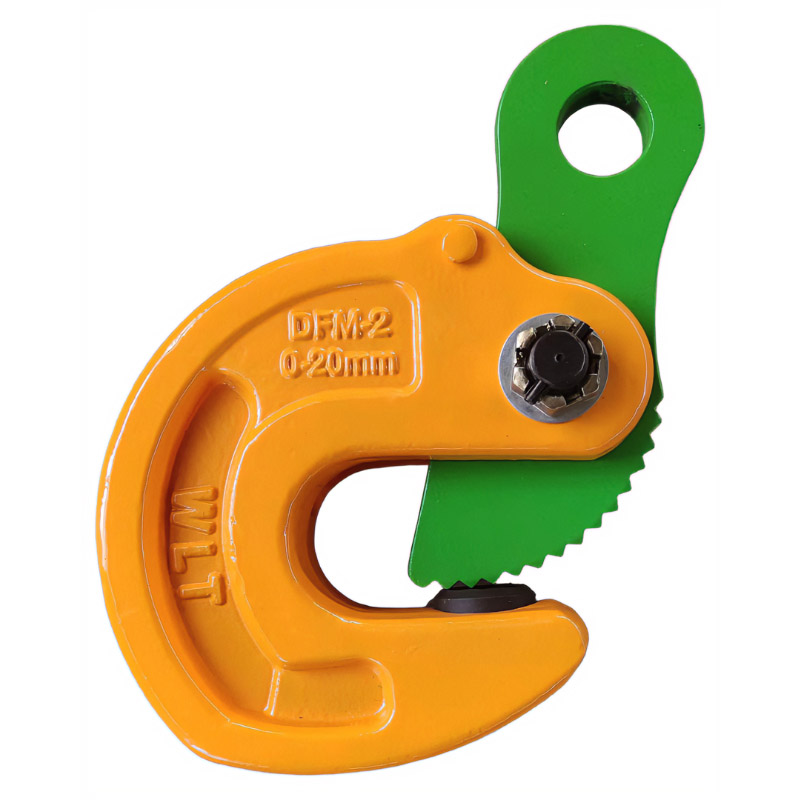

TYPE DIE‑FORGED TURNOVER PLATE LIFTING CLAMP
⦁ Working load limit(WLL): 1-10 Tonnes

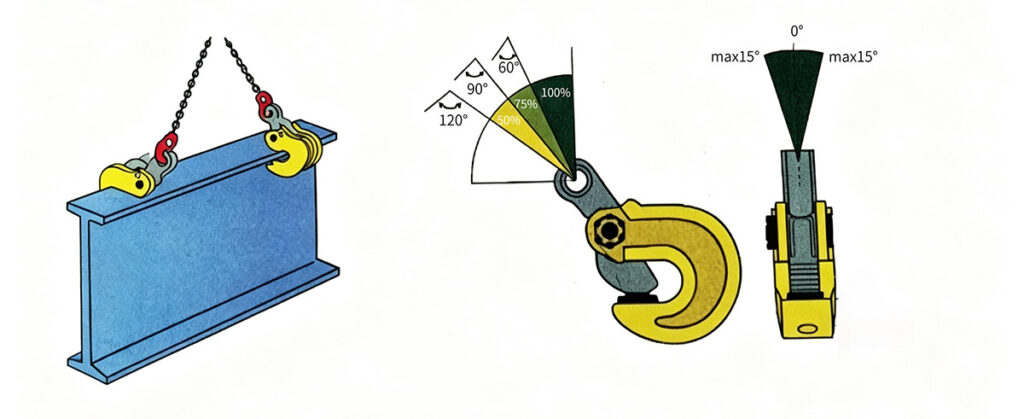

⦁ Suitable for lifting and turning steel plates
⦁ Compact, lightweight structure, simple operation
⦁ Main body and components are die-forged from special alloy steel with heat treatment, high strength & long service life
⦁ Single clamp working load: 1-10T; cross beam required for horizontal plate lifting
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) |
|---|---|---|---|---|
| RJ-0107 | DFM1 | 1.0 | 0-15 | 2.7 |
| RJ-0108 | DFM2 | 2.0 | 0-20 | 5.6 |
| RJ-0109 | DFM3 | 3.0 | 0-30 | 8 |
| RJ-0110 | DFM5 | 5.0 | 0-60 | 13.4 |
| RJ-0111 | DFM10 | 10.0 | 0-80 | 26 |
