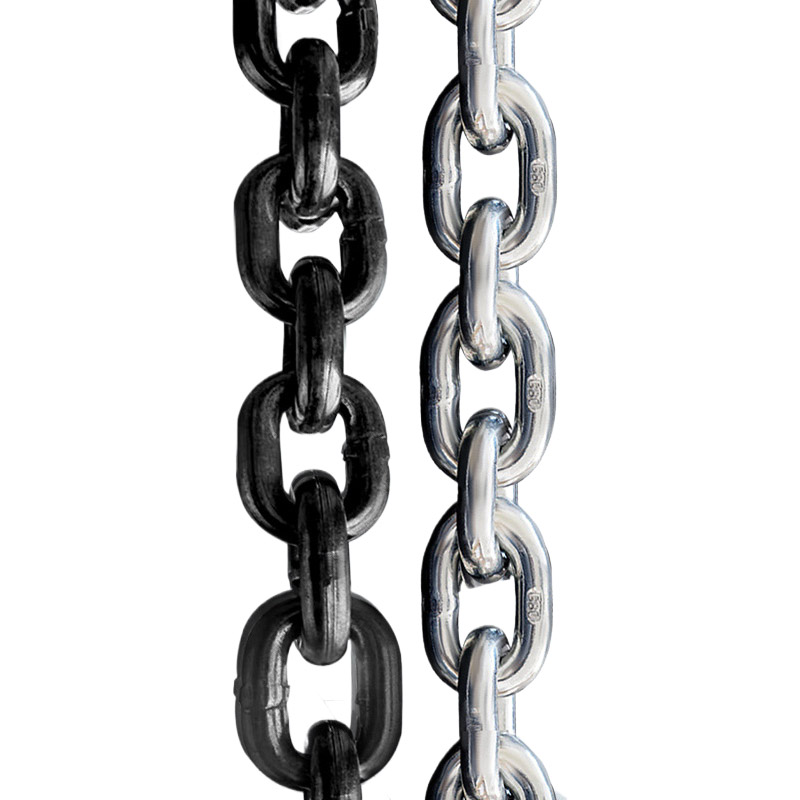

G80 Manganese Steel Lifting Chain

• This chain fits industrial lifting, mining hoisting, traction applications and safety guard rail projects.
• Our professional lifting chain delivers smooth hoisting, outstanding durability, corrosion and abrasion resistance.
• Constructed from high-grade alloy steel, it offers superior wear resistance, high tensile strength and heat resistance to extend service life significantly.
• Full automatic welding process guarantees operational safety for all heavy load work.

Product Parameters

Detailed Product Parameter Analysis

Product Name Professional Lifting Chain

Material High Quality Alloy Steel

Application Lifting, Transport, Binding, Straightened / Non-Straightened

Surface Finish Black Oxide, Polished, Galvanized

Size (mm)	Min Inside Width	Max Outside Width	Weight Per Meter (kg/m)	WLL (tonnes)	Test Load (kN)	Min Breaking Load (kN)
6×18	7.5	21	0.79	1.1	27	45.2
7×21	9	24.5	1.07	1.5	37	61.6
8×24	10	28	1.38	2	48	80.4
10×30	12.5	35	2.2	3.2	76	125
12×36	15	42	3.1	4.6	109	181
13×39	16.3	46	3.8	5	128	214
14×42	18	49	4.13	6.3	150	250
16×48	20	56	5.63	8	192	320
18×54	23	63	6.85	10	246	410
20×60	25	70	8.6	12.5	300	500
22×66	28	77	10.2	15.3	366	610
26×78	35	91	14.87	21.3	510	850
30×90	38	105	19.6	28.3	678	1130
32×96	40	106	22.92	32.2	772	1286
11×43	12.6	36.5	2.33	3.8	92	154
12.5×38	15.5	42.2	3.3	4.9	117	196
14×50	17	48	4	6.3	150	250
