G209 Screw Pin Type Bow Shackle, Alloy Forged Lifting Rigging Hardware
• Adopts newly upgraded alloy forging technology
• The entire shackle body is integrally die-forged
• High safety factor for heavy lifting operation
• Standard, neat and clear screw threads on pin
• Wear-resistant and durable for long-term hoisting work

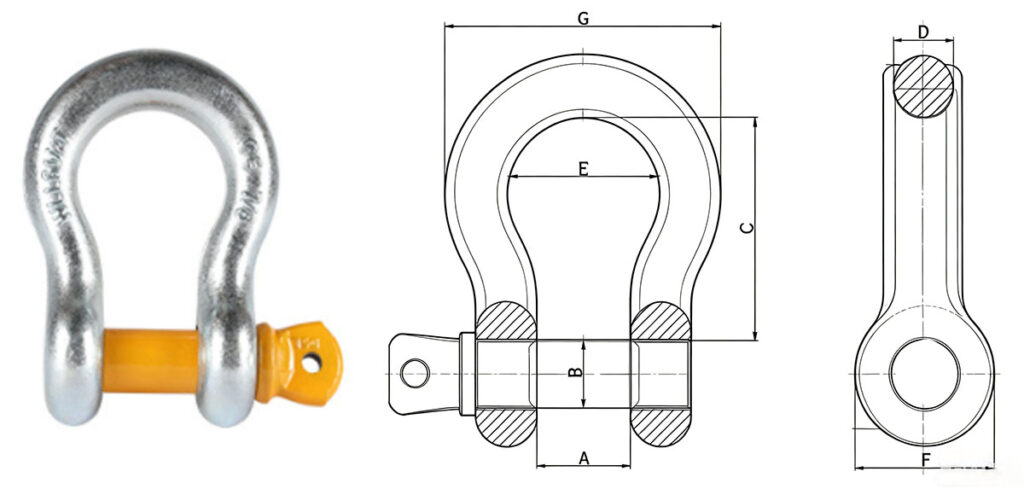

G209 BOW TYPE SHACKLE
| ITEM NO. | WLL (T) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| YXTC-2 | 2 | 20 | 16 | 46 | 12 | 33 | 29 | 58 | 0.3 |
| YXTC-3.25 | 3.25 | 27 | 19 | 61 | 16 | 43 | 38 | 75 | 0.6 |
| YXTC-4.75 | 4.75 | 32 | 22 | 71.5 | 19 | 51 | 46 | 89 | 1 |
| YXTC-6.5 | 6.5 | 38 | 25 | 84 | 22 | 58 | 53 | 102 | 1.44 |
| YXTC-8.5 | 8.5 | 43 | 28 | 95 | 25.5 | 68 | 60.5 | 119 | 2.26 |
| YXTC-9.5 | 9.5 | 48 | 32 | 108 | 29 | 74 | 68.5 | 134 | 3.15 |
| YXTC-12 | 12 | 50 | 36 | 119 | 32 | 81 | 76 | 145 | 4.4 |
| YXTC-13.5 | 13.5 | 55 | 38 | 133 | 35 | 90 | 84 | 160 | 6.03 |
| YXTC-17 | 17 | 60.5 | 42 | 146 | 38 | 97 | 92 | 173 | 7.5 |
| YXTC-25 | 25 | 73 | 50 | 178 | 44.5 | 127 | 106.5 | 216 | 12.5 |
| YXTC-35 | 35 | 83 | 56 | 197 | 51 | 146 | 122 | 248 | 18.2 |
| YXTC-55 | 55 | 103 | 70 | 267 | 63 | 181 | 144.5 | 307 | 34.8 |
