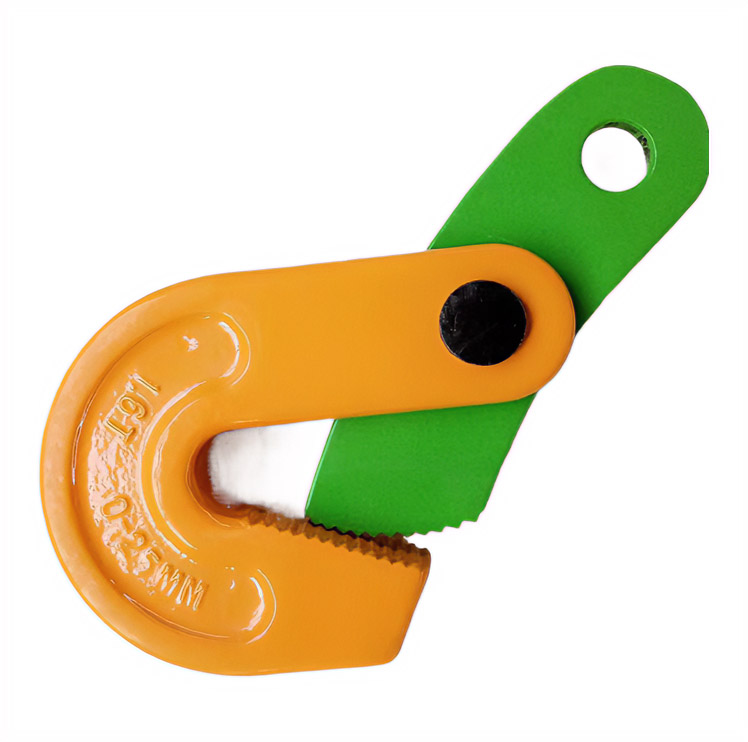

L‑TYPE FORGED HORIZONTAL PLATE LIFTING CLAMP

• Working load limit(WLL)0.8-10T
• Suitable orfing and transport of steel plates,construction and profiled bar in horizontal position.
• Manufactured from high quality carbon steel.
• Avoid snatch or shock loading.

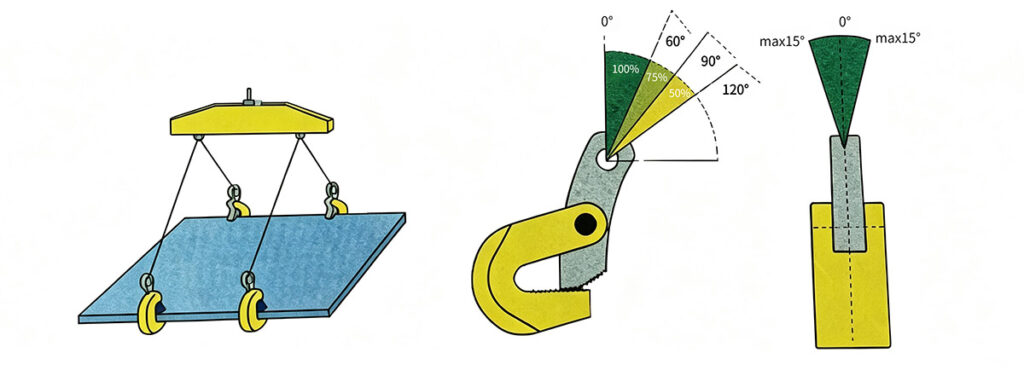

• The working load limit is the maximum load that the clamp a e authorized to support when used in pairs with a lift angle of 60.In lifting operations the clamps can be used in pairs or multiples.
• The main body and parts are made from die forge spec’al alloy steels. which are optimally tempered for maximum strengtl an l durability.

l模锻吊示意图
Part No. Model WLL (tonnes) Jaw Opening (mm) Weight (kg)
RJ-0035 L0.8 0.8 0-15 2
RJ-0036 L1 1.0 0-20 4
RJ-0037 L1.6 1.6 0-25 6.5
RJ-0038 L2.5 2.5 0-30 11
RJ-0039 L2.5(B) 2.5 25-50 11
RJ-0040 L3.2 3.2 0-40 12.5
RJ-0041 L3.2(B) 3.2 30-60 12.5
RJ-0042 L5 5.0 0-50 19
RJ-0043 L5(B) 5.0 50-80 20
RJ-0044 L10 10.0 20-100 43
