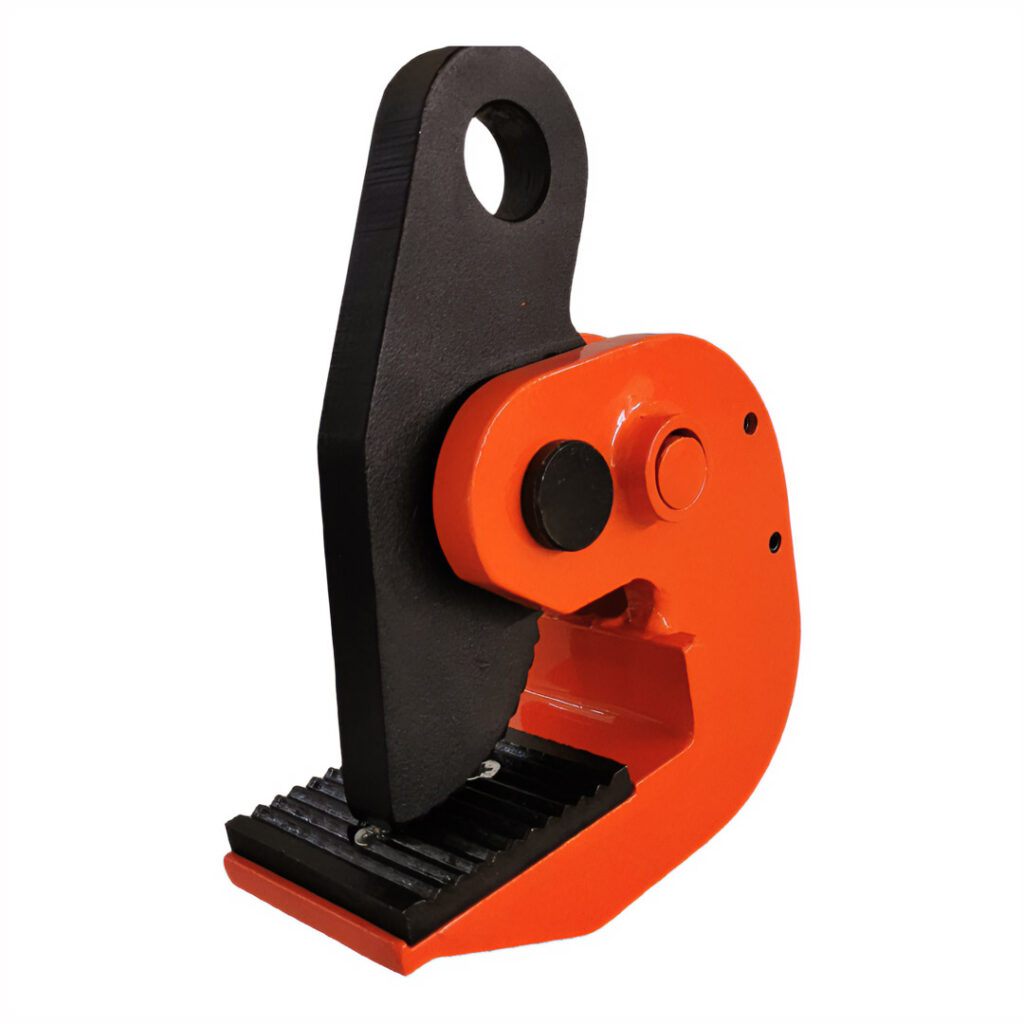

PPD TYPE HORIZONTAL PLATE LIFTING CLAMP
Working load limit(WLL)0.8-30T
● Suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
● Manufactured from high quality carbon steel.
● Avoid snatch or shock loading.

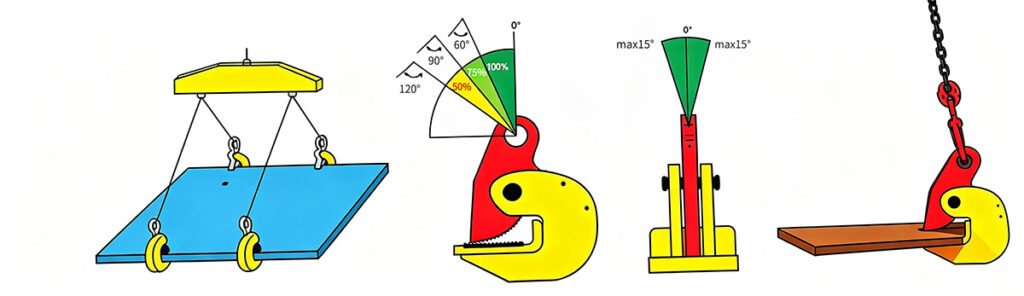

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°. In lifting operations the clamps can be used in pairs or multiples.
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) |
|---|---|---|---|---|
| RJ-0051 | PDB0.8 | 0.8 | 0-25 | 2.5 |
| RJ-0052 | PDB1 | 1.0 | 0-30 | 3.5 |
| RJ-0053 | PDB1.6 | 1.6 | 0-30 | 4 |
| RJ-0054 | PDB2 | 2.0 | 0-40 | 5 |
| RJ-0055 | PDB3.2 | 3.2 | 0-45 | 6 |
| RJ-0056 | PDB4 | 4.0 | 0-50 | 6.5 |
| RJ-0057 | PDB5 | 5.0 | 0-55 | 7.5 |
| RJ-0058 | PDB6 | 6.0 | 0-65 | 10.5 |
| RJ-0059 | PDB6(B) | 6.0 | 0-130 | 22 |
| RJ-0060 | PDB8 | 8.0 | 0-100 | 22 |
| RJ-0061 | PDB10 | 10.0 | 0-125 | 33 |
| RJ-0062 | PDB16 | 16.0 | 50-150 | 50 |
| RJ-0063 | PDB30 | 30.0 | 100-270 | 108 |
